How to Build Your Own LoRaWAN Gateway


Have you ever wondered how all those smart devices around us talk to each other? Like, how does a sensor in a garden know when the plants need water and send that info to your phone? Well, today, we’re going on an awesome journey to build something called a LoRaWAN gateway—a device that helps gadgets chat over super long distances using radio signals. Don’t worry if that sounds complicated; we’ll make it fun and simple, like building a LEGO set!

This project uses a Raspberry Pi 4, a tiny computer that’s like the brain of our gateway, and a special part called the RHF0M301 LoRa module, which is like the antenna that catches and sends signals. We’ll also use Python, a coding language that’s easier than you might think. By the end, you’ll have your very own gateway that can listen to sensors or even send messages. Ready? Let’s get started!

What’s a LoRaWAN Gateway, Anyway?

Before we grab our tools, let’s talk about what we’re building. Imagine you’re at a huge school with kids in different classrooms trying to send notes to each other. Instead of running across the school, they pass their notes to a teacher who collects them and delivers them to the right place. A LoRaWAN gateway is like that teacher. It collects messages (called “packets”) from devices like sensors, thermometers, or trackers, and sends them to the internet or another device.

The cool thing about LoRaWAN is that it uses LoRa, a special kind of radio signal that can travel really far—like miles!—even through walls or trees. That’s why it’s perfect for things like smart farms (to check soil moisture), smart homes (to control lights), or even tracking your bike if it gets lost. Our gateway will be the middleman that makes all this communication possible.

Why Build Your Own?

You might be thinking, “Can’t I just buy a gateway?” Sure, you could, but building one yourself is way cooler for a few reasons:

  1. You Learn Tons: You’ll get to play with a Raspberry Pi, write code, and understand how devices talk to each other.
  2. It’s Customizable: Want your gateway to do something special, like only listen to certain sensors? You can make it happen!
  3. It’s Cheaper: Buying a gateway can cost a lot, but building one with a Raspberry Pi is more budget-friendly.
  4. Bragging Rights: Imagine telling your friends you built a device that connects smart gadgets. Instant tech hero status!

What You’ll Need

Okay, let’s gather our supplies. Think of this like packing for a camping trip—you want to make sure you have everything before you start. Here’s what you’ll need:

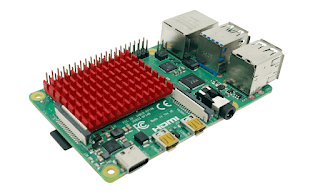

  1. Raspberry Pi 4: This is a small computer about the size of a credit card. If you don’t have one, you can get it online for around $35–$75, depending on the model. We’re using the 4GB version, but 2GB or 8GB works too.
  2. RHF0M301 LoRa Module: This is the part that handles the LoRa signals. It’s like a walkie-talkie for your Raspberry Pi. You’ll also need a connector to plug it into the Pi.
  3. MicroSD Card: This is where the Raspberry Pi stores its “brain” (the operating system). Get one with at least 16GB of space.
  4. Power Supply: A USB-C cable and charger for the Raspberry Pi. Make sure it’s 5V and at least 3A to keep things running smoothly.
  5. USB Power for the LoRa Module: The RHF0M301 needs its own power through a USB port to avoid problems like shutting off randomly.
  6. Computer with Internet: You’ll need this to set up the Raspberry Pi and download some software.
  7. Optional Stuff: A keyboard, mouse, and monitor if you want to connect directly to the Pi (but we’ll mostly use a computer to control it remotely).

Got all that? Awesome! If you’re missing something, don’t worry—you can order it online or ask a parent or teacher for help.

Step 1: Setting Up Your Raspberry Pi

If you’ve never used a Raspberry Pi before, it’s like a tiny toy computer that can do big things. But first, we need to get it ready to work. Let’s break it down.

Installing the Operating System

The Raspberry Pi needs an operating system (OS), which is like the software that makes your phone or computer work. We’re using Raspberry Pi OS Lite (64-bit), based on something called Debian Bookworm (released November 19, 2024). The “Lite” version is perfect because it’s simple and doesn’t have extra stuff we don’t need.

Here’s how to set it up:

  1. Download the Raspberry Pi Imager: On your computer, go to the Raspberry Pi website and download a tool called the Raspberry Pi Imager. It’s like a magic wand for installing the OS.
  2. Insert the MicroSD Card: Plug your MicroSD card into your computer (you might need an adapter).
  3. Use the Imager: Open the Raspberry Pi Imager, choose Raspberry Pi OS Lite (64-bit) from the list, select your MicroSD card, and click “Write.” This will copy the OS onto the card. It takes a few minutes, so maybe grab a snack!
  4. Pop the Card into the Pi: Once it’s done, take the MicroSD card out of your computer and slide it into the slot on the bottom of your Raspberry Pi.

Connecting to Your Pi

Now that the OS is on the MicroSD card, let’s turn on the Raspberry Pi and connect to it. You can do this in two ways:

  • With a Monitor: Plug a keyboard, mouse, and monitor into your Pi, then connect the power. You’ll see a screen with text asking you to log in.
  • Remotely with SSH: This is cooler because you can control the Pi from your computer. To do this, you need to enable SSH and connect the Pi to your Wi-Fi.

Here’s how to enable SSH and Wi-Fi:

  1. Reinsert the MicroSD Card: Put the MicroSD card back into your computer.

  2. Create an SSH File: In the “boot” folder of the MicroSD card, create an empty file called ssh (no extension). This tells the Pi to turn on SSH when it starts.

  3. Set Up Wi-Fi: In the same “boot” folder, create a file called wpa_supplicant.conf and add this text:

    country=US ctrl_interface=DIR=/var/run/ wpa_supplicant GROUP=netdev update_config=1 network={ ssid="YourWiFiName" psk="YourWiFiPassword" }

    Replace YourWiFiName and YourWiFiPassword with your actual Wi-Fi details. Save the file.

  4. Boot Up the Pi: Eject the MicroSD card, put it back in the Pi, and plug in the power. Give it a minute to start.

  5. Find the Pi’s Address: On your computer, use a tool like Angry IP Scanner or check your router’s settings to find the Pi’s IP address (something like 192.168.1.100).

  6. Connect with SSH: Open a terminal on your computer (on Windows, use PuTTY; on Mac/Linux, use the Terminal app) and type:

    ssh pi@<Pi’s IP address>

    The default password is raspberry. If it works, you’ll see a command line that says you’re inside the Pi. Woohoo!

Step 2: Connecting the LoRa Module

Now that your Raspberry Pi is up and running, let’s plug in the RHF0M301 LoRa module. This is the part that makes your gateway listen to LoRa signals.

  1. Turn Off the Pi: Unplug the power to avoid damaging anything.
  2. Attach the Module: Carefully connect the RHF0M301 to the Raspberry Pi’s GPIO pins (the little metal pins on the Pi). Make sure it’s secure and lined up correctly. The module usually comes with a connector board to make this easier.
  3. Power the Module: Plug a USB cable into the RHF0M301’s USB port and connect it to a power source (like a phone charger or a USB port on your computer). This gives the module extra power so it doesn’t crash.
  4. Double-Check: Make sure everything is snug and nothing’s loose.

Step 3: Enabling SPI

Okay, here’s where things get a bit techy, but don’t worry—I’ll explain it like we’re chatting about a video game. The Raspberry Pi and the LoRa module need to talk to each other using something called SPI (Serial Peripheral Interface). It’s like a secret handshake that lets them share info. We need to turn SPI on.

Here’s how:

  1. Log Back In: Use SSH to connect to your Pi again (ssh pi@<IP address>).

  2. Open the Config Tool: Type this command and hit Enter:

    sudo raspi-config

    This opens a menu that looks like a settings screen.

  3. Enable SPI: Use the arrow keys to go to Interface Options, then select SPI, and choose Enable. Hit Enter, then select Finish to save.

  4. Reboot the Pi: Type sudo reboot to restart the Pi so the changes kick in.

Fixing a Sneaky Problem

There’s a tiny issue we need to fix because of a recent update to the Raspberry Pi. The update turned on something called CS1 (a pin that helps with SPI), but our LoRa module needs that pin for something else (a reset signal). If we don’t fix this, the module won’t work right.

Here’s what to do:

  1. Edit a File: After the Pi reboots, log back in with SSH and type:

    sudo nano /boot/firmware/config.txt

    This opens a file where we can tweak settings.

  2. Add a Line: Scroll to the bottom of the file and add this line:

    dtoverlay=spi0-cs,cs1_pin=25

    This tells the Pi to use a different pin for CS1, freeing up the one our module needs.

  3. Save and Exit: Press Ctrl+O, hit Enter to save, then Ctrl+X to exit.

  4. Reboot Again: Type sudo reboot to make sure the change sticks.


Step 4: Installing Python Stuff

Our gateway needs some software to work, and we’re using Python, a coding language that’s like writing instructions in plain English. But before we write any code, we need to set up a special space on the Pi called a virtual environment. Think of it like a sandbox where we can play without messing up the rest of the Pi.

Setting Up the Virtual Environment

  1. Install Tools: Log back into the Pi and type:

    sudo apt install python3-venv python3-full

    This grabs the tools we need. It might take a minute, so be patient.

  2. Create the Sandbox: Type:

    python -m venv lorthon-venv

    This makes a folder called lorthon-venv where we’ll keep our Python stuff.

  3. Jump Into the Sandbox: Type:

    source ~/lorthon-venv/bin/activate

    You’ll see (lorthon-venv) appear in your terminal, which means you’re in the virtual environment. Cool, right?

  4. Exit If You Need To: If you want to leave the sandbox later, just type deactivate.

Installing Cython

Inside the virtual environment, we need a tool called Cython, which helps our code run faster. Type:

pip install cython

This downloads and installs Cython. Easy peasy!


Step 5: Getting LoRthon

Now we’re ready to install the software that makes our LoRa module work. It’s called LoRthon, and it’s like a translator that helps the Raspberry Pi understand the LoRa module’s language.

  1. Make a Folder: Let’s keep things organized. Type:

    cd ~ mkdir dev cd dev

    This creates a folder called dev (short for “development”) and moves you into it.

  2. Grab LoRthon: We’re going to download LoRthon from a website called GitHub, where coders share their projects. Type:

    git clone https://github.com/galalmounir/lorthon.git

    This copies the LoRthon code to your Pi.

  3. Install Python-Dev: Before we build LoRthon, we need one more tool. Type:

    sudo apt install python3.11-dev

    This makes sure Python has everything it needs to work with LoRthon.

  4. Build LoRthon: Move into the LoRthon folder and build it:

    cd ~/dev/lorthon make

    This command puts all the LoRthon pieces together, like assembling a puzzle.


Step 6: Testing Your Gateway

We’re almost there! Let’s test our gateway to make sure it’s working. LoRthon comes with a test script called test.py that checks if the Raspberry Pi and LoRa module are talking to each other.

  1. Run the Test: Type:

    cd ~/dev/lorthon/tst python test.py
  2. What You’ll See: If everything’s set up right, your terminal will start showing messages about packets the gateway is picking up. It’s like seeing your walkie-talkie light up when someone’s talking! The test script also sends a “Hello World” message every now and then, just to say hi.

  3. What If It Doesn’t Work?: If you don’t see anything or get an error, double-check these things:

    • Is the LoRa module plugged in securely?
    • Did you enable SPI and fix the CS1 pin?
    • Are you in the virtual environment? (Check for (lorthon-venv) in your terminal.)
    • Did you install all the tools, like Cython and python3.11-dev?

If you’re still stuck, don’t panic! Ask a parent, teacher, or friend who knows tech stuff, or search online for help.

Step 7: Making It Your Own

The test script is cool, but it’s just a starting point. Now that your gateway is working, you can write your own code to make it do whatever you want. Here are a few ideas:

  • Listen for Sensors: If you have a LoRa sensor (like one that measures temperature), you can make your gateway collect its data and show it on your computer.
  • Send Messages: Write code to send your own messages, like “Water the plants!” to a smart garden device.
  • Connect to the Internet: Hook your gateway up to a LoRaWAN network (like The Things Network) to send data to the cloud.

To start coding, open the test.py file in a text editor (like nano) and play around with it:

nano ~/dev/lorthon/tst/test.py

Python is super beginner-friendly, so don’t be afraid to experiment. If you mess up, you can always download LoRthon again.

What’s Next?

You’ve built a LoRaWAN gateway—how cool is that?! But the adventure doesn’t stop here. Here are some fun things to try next:

  1. Add Sensors: Get a LoRa sensor (like a temperature or motion sensor) and make your gateway talk to it.
  2. Join a Network: Sign up for a free LoRaWAN network like The Things Network and connect your gateway to the world.
  3. Learn More Python: Check out free coding websites like Codecademy or Khan Academy to level up your skills.
  4. Build Another Project: Use your Raspberry Pi for something else, like a retro gaming console or a robot.

Wrapping It Up

Wow, you made it! You’ve gone from zero to tech hero, building a LoRaWAN gateway that can connect smart devices over crazy long distances. You’ve learned how to set up a Raspberry Pi, plug in a LoRa module, tweak settings, install software, and even test your creation. That’s a huge deal!

This project is just the start. The tech world is full of possibilities, and you’ve already got the skills to explore it. Keep tinkering, keep learning, and most importantly, keep having fun. Who knows—maybe one day you’ll invent the next big thing!

If you want to know more about LoRaWAN, Raspberry Pi, or coding, let me know—I’m here to help. Now go show off your gateway to your friends and family. You totally earned it!
